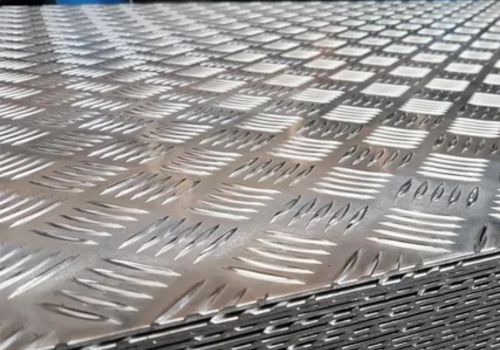

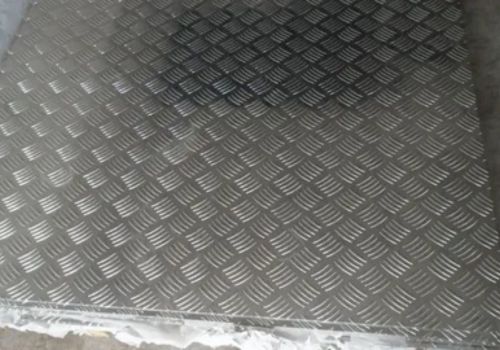

Kiri Aluminium is a trusted name in Hamilton, New Zealand, known for supplying robust and reliable materials directly to the heart of local industry. We take pride in offering Aluminium 5083 Chequered Plates, a product engineered for demanding environments. This isn’t just standard sheet metal; the distinctive raised pattern provides exceptional slip resistance, making it a cornerstone of safety and durability. When you choose Kiri Aluminium, you’re choosing a partner dedicated to quality and backed by deep, local expertise for your most challenging projects.
The strength of our Aluminium 5083 Chequered Plates comes from a specific magnesium-dominated composition, which gives it an outstanding resistance to saltwater corrosion. This makes it incredibly tough and well-suited for harsh conditions. Mechanically, it maintains excellent performance, offering high tensile strength and impressive formability without losing its structural integrity. Essentially, this alloy delivers a rare combination where it is both strong enough for heavy loads and versatile enough to be worked into the shapes you need, all while fighting off rust and wear.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321
Thickness : 0.5-300
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Kiri Aluminium based in Hamilton, New Zealand is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5083 Chequered Plates to meet specific project needs. Our team at Kiri Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@kirialuminium.com
The unique properties of these plates make them the go-to choice for situations where safety and longevity are paramount. You’ll frequently find them underfoot on marine vessel decks, offshore platforms, and walkways in industrial plants, providing a secure, non-slip surface. Beyond flooring, their durability is utilised in the construction of truck bodies, industrial flooring, and even in architectural applications that require a modern, hard-wearing finish. Essentially, anywhere that demands a material that can withstand heavy use and corrosive elements is a perfect fit for 5083 chequered plate.
